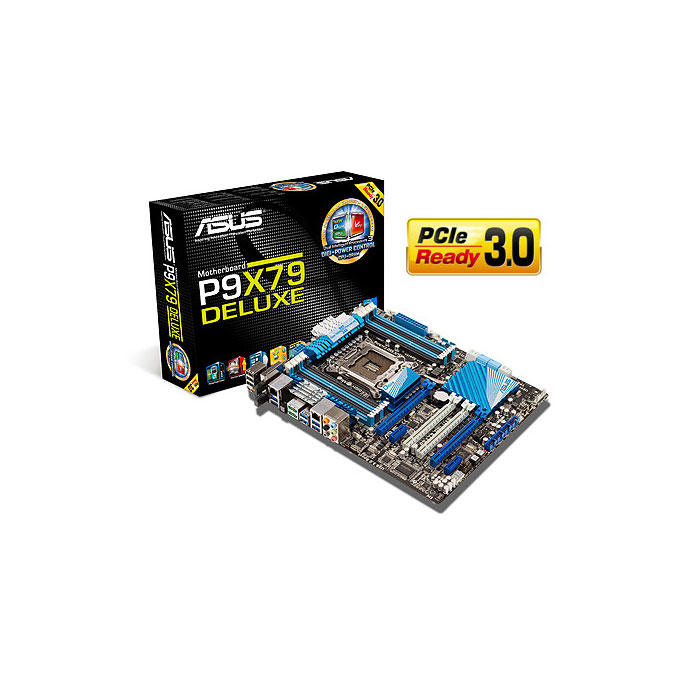

ASUS P9X79 DELUXE

CPU
Intel® Socket 2011 for 2 nd Generation Core™ i7 Processors
Supports Intel® Turbo Boost Technology 2

• Chipset
Intel® X79

Memory
8 x DIMM, Max. 64GB, DDR3 2400(O.C.)/2133(O.C.)/1866/1600/1333/1066 MHz Non-ECC, Un-buffered Memory
Quad Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.

VGA
-

Expansion Slots
3 x PCIe 3.0/2.0 x16 (dual x16 or x16, x8, x8)
1 x PCIe 3.0/2.0 x16 (x8 mode)
2 x PCIe 2.0 x1

Supports NVIDIA® 3-Way SLI™ Technology
Supports AMD Quad-GPU CrossFireX™ Technology

Connectors
1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
4 x USB 2.0 connector(s) support(s) additional 8 USB 2.0 port(s)
4 x SATA 6Gb/s connector(s)
4 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s) (4 -pin)
4 x Chassis Fan connector(s) (4 -pin)
1 x Optional Fan connector(s) (4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Q-Connector)
1 x MemOK! button(s)
1 x TPU switch(es)
1 x EPU switch(es)
1 x Power-on button(s)
1 x Reset button(s)
1 x Clear CMOS jumper(s)
1 x Bluetooth v3.0 + HS header(s)

Storage
Intel® X79 chipset :
2 x SATA 6Gb/s port(s), white
4 x SATA 3Gb/s port(s), blue
Support Raid 0, 1, 5, 10

Marvell® PCIe 9128 controller :
2 x SATA 6Gb/s port(s), white

ASMedia® ASM1061 controller :
2 x Power eSATA 6Gb/s port(s), green

Audio
Realtek® ALC898 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
- Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound
- Blu-ray audio layer Content Protection
- DTS Ultra PC II
- DTS Connect
- Optical S/PDIF out port(s) at back panel

LAN
Realtek® 8111E , 1 x Gigabit LAN Controller(s)
Intel® 82579V, 1 x Gigabit LAN Controller(s)
Dual Gigabit LAN controllers- 802.3az Energy Efficient Ethernet (EEE) appliance

Wireless Data Network
Wi-Fi 802.11 b/g/n

Rear Panel I/O Ports
1 x Bluetooth module(s)
2 x Power eSATA 6Gb/s
2 x LAN (RJ45) port(s)
6 x USB 3.0
4 x USB 2.0 (one port can be switched to USB BIOS Flashback)
1 x Optical S/PDIF out
6 x Audio jack(s)
1 x Wi-Fi antenna port(s)
1 x USB BIOS Flashback Button(s)

BIOS
64 Mb Flash ROM, UEFI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.6, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3

Form Factor
ATX

Dimensions
30.5 cm x 24.4 cm

Package
Box
