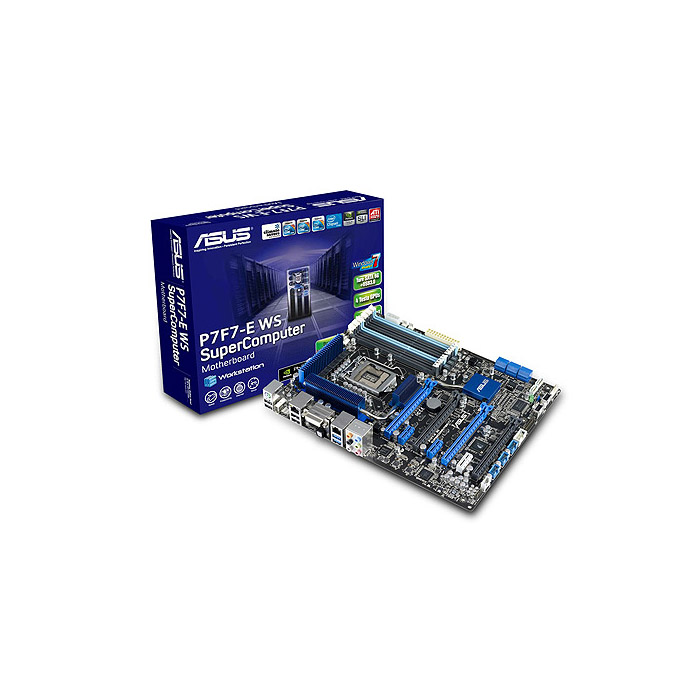

ASUS P7F7-E WS Supercomputer

CPU
Intel® Socket 1156 Core™ i7 Processor/Core™ i5 Processor/Core™ i3 Processor/ Pentium® desktop Processors
LGA 1156 socket for Intel® XEON 3400 series server processor

Chipset
Intel® Ibex Peak 3450 Chipset
Nvidia NF200*1

Memory
6 x DIMM, Max. 16 GB, DDR3 2000(O.C.)*/1333/1066/800 ECC,Non-ECC,Un-buffered Memory
Dual Channel memory architecture
*Support Intel Extreme Memory Profile (XMP)
**Due to Intel spec definition, DIMMs of DDR3-1333 or above are supported by specific CPU models only.
***Please load X.M.P in BIOS for hyper DIMM (DDR3 1333MHz or above) support.
****ECC Un-buffered memory support requires Intel® Xeon X3400 series or L3400 series processors

VGA
To use the onboard video ports, you must install an Intel CPU with integrated graphics.
Multi-VGA output support:DVI-I port
Supports DVI with max. resolution 1920x 1200 @ 60Hz
Supports RGB with max. resolution 2048x 1536 @ 75 Hz
Maximum shared memory of 1748 MB

CUDA support
Up to 3 NVIDIA Tesla cards + 1 NVIDIA Quadro card
Up to 4 NVIDIA Tesla cards (only for Clarkdale processor)

Expansion Slots
2 x PCIe 2.0 x16 (@ x16 or x8)
2 x PCIe 2.0 x16 (@ x8)
3 x PCIe x1 (@ x1)

Supports NVIDIA® Geforce 3 way/2 way SLI™ techonology
Supports ATI® CrossFireX™ technology, up to Quad CrossFireX™

Storage
Intel® Ibex Peak 3450 Chipset
6 xSATA 3.0 Gb/s ports
Intel® Matrix Storage Support RAID 0,1,5,10
Marvell® 9128 PCIe SATA6Gb/s controller
2 xSATA 6.0 Gb/s ports, supporting RAID 0 and 1

Connectors
24-pin EATX Power connector
8-pin EATX +12V Power connector
4pin EZ_PLUG Power connector
CPU fan with PWM control
Chassis fan1 with Q-fan control
Chassis fan2 with Q-fan control
Chassis fan3 with Q-fan control
PWR fan
CD audio in
1 x COM port connector
3 x USB connectors support additional 6 USB ports
2 x USB 2.0/1.1 ports
TPM header
S/PDIF Out header
1 x MemOK! Button
20-pinfront panel connector

Audio
VIA VT2020 10-Channel High Definition Audio CODEC
Multi-Streaming
Jack-Sensing
Front Panel Jack-Retasking
Optical S/PDIF out ports at back I/O
ASUS Noise-Filer

LAN
2 x Realtek 81112L Dual Gb LAN Support Teaming Technology

IEEE1394
LSI FW643E-02 controller supports 1 x 1394a port(s) and 2 x 1394b port(s)

Rear Panel I/O Ports
1 x PS/2 Keyboard/Mouse Combo port
1 x DVI
1 x S/PDIF Out (Optical)
2 x LAN(RJ45) port
10 -Channel Audio I/O
4 x USB 2.0/1.1 ports
2 x USB 3.0/2.0 ports
1 x IEEE1394a
2 x IEEE1394b

BIOS
64 Mb Flash ROM , AMI BIOS, Green, PnP, DMI v2.0, ACPI v2.0a, SMBIOS v 2.6

Form Factor
ATX

Dimensions
30.5 cm x 24.4 cm

Package
Box
